最近發現某一批次的Hi-Capa彈匣出氣氣閥, 開了大約300法之後, 出現直接漏氣的現象, 解決方法 : 可把氣閥杯的底部膠圈,由5.5mmx1變做6mmx1, 再加上潤滑油收緊便可以! 此情況只會出現在Hi-Capa, 其他產品如常使用5.5mmx1膠圈.

Recently, it was discovered that a batch of Hi-Capa magazines had a problem where the Gas release valve would start to leak after approximately 300 shots fired. The solution is to replace the bottom rubber O-ring from 5.5mmx1 to 6mmx1, and tighten it with lubricating oil. This problem only occurs in Hi-capa magazines, and other products can still use the standard 5.5mmx1 O-ring. (06-07-2023)

ProWin Hi-Capa O-Ring Replacement

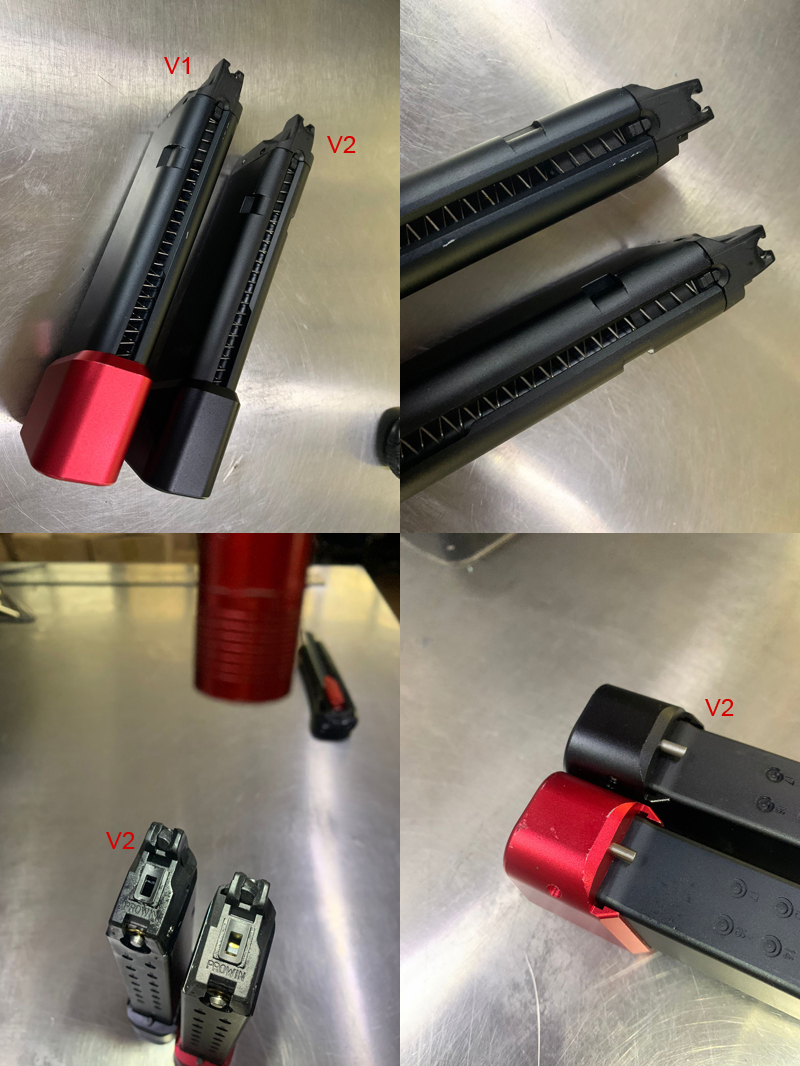

新版本有底座的加長 Marui Glock 彈夾,將會重新上市,新供貨的全部變為第二代(V2)產品 (28-01-2022)

在外觀上分別如下:
1. 彈夾鎖,由單邊(V1)變成雙邊(V2)
2. 底座原本(V1)是包一條長和一條短的針,現在(V2)只剩下真槍尺寸的那種
3. 底座差氣孔偏移了 0.7mm,不能與上一代共用
4. 彈夾內部儲氣和封氣重新設計,增加運作性能
注意 : 銷售商方面麻煩你們更換先前所拍下的照片,謝謝!


ProWin CNC Magazine for Marui Glock V2


News : ProWin CNC Hop-Up Chamber for Tokyo Marui P90 改為雷射雕刻商標 [Laser Marking LOGO] (09-10-2020)



Test 134a (16-09-2020)



Test (15-09-2020)



Coming soon (09-09-2020)

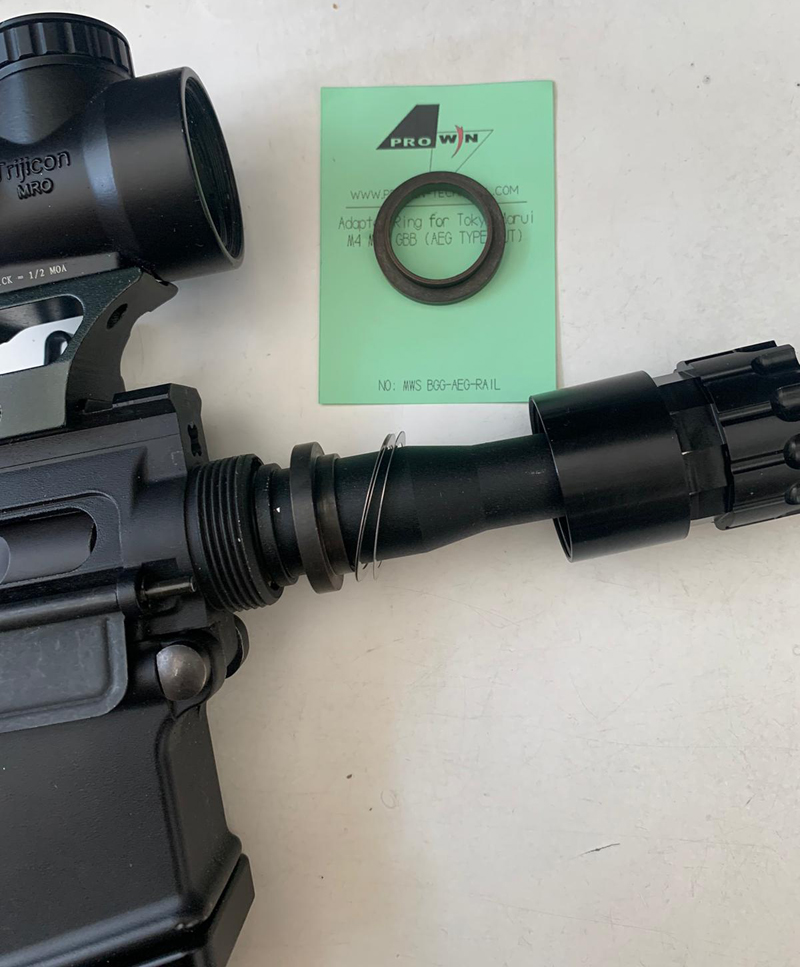

ProWin Adapter Ring for Toko Marui M4 MSW GBB (AEG TYPE NUT) (23-07-2020)

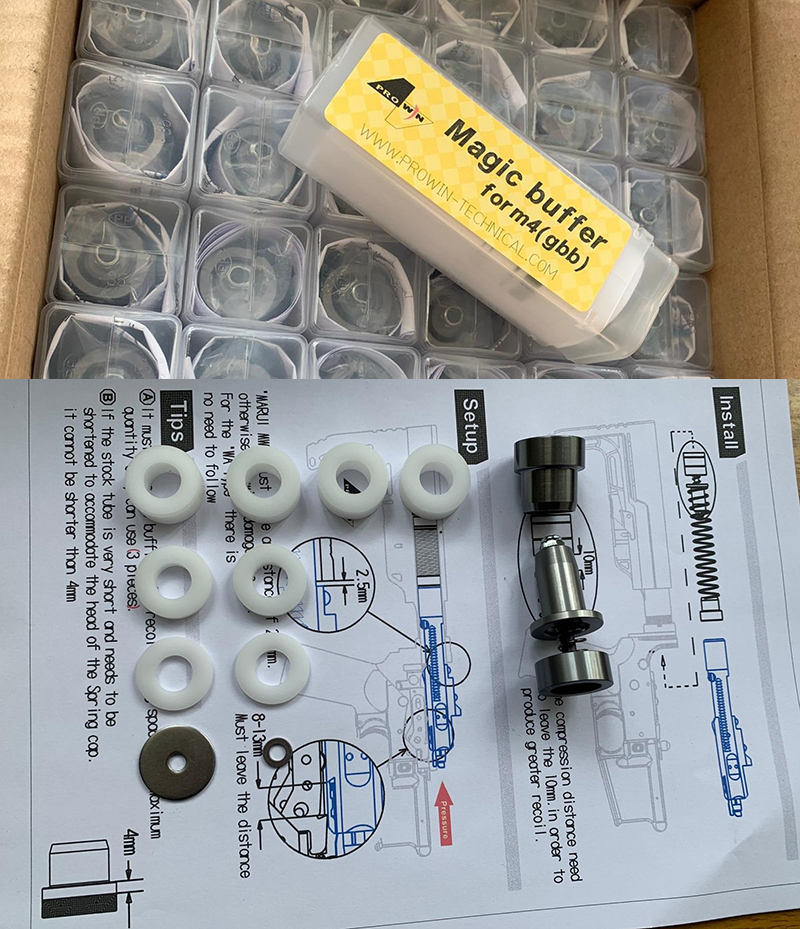

ProWin Magic buffer for M4 GBB (16-06-2020)

This product is mainly to improve the gbb stability of the operation, reduce the damage of the nozzle and bolt carrier and other accessories in one pass, and increase the positioning ability of the bolt carrier.

本產品主要是為了提高GBB操作的穩定性,減少Nozzle和Blot carrier等附件的損壞率,提高Bolt carrier的定位能力,通過調教去加減後座力. (針對Marui MWS更換尾通之後而產生的問題,而特別設計出來的。)







O-Ring replacement for ProWin CNC Glock Magazine (19-05-2020)

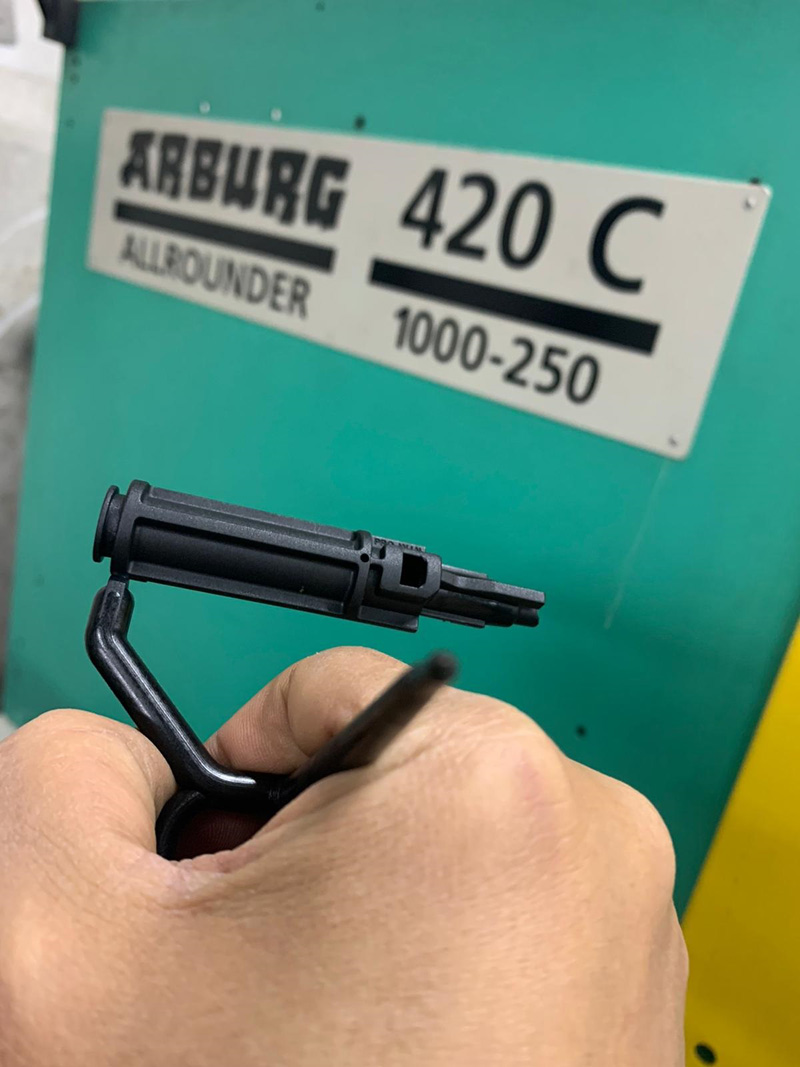

Coming soon... ProWin Hi-Flow Nozzle for Marui MWS M4A1 (18-02-2020)





Coming soon... ProWin AR9 adapter for Marui M4 MWS System (03-01-2020)

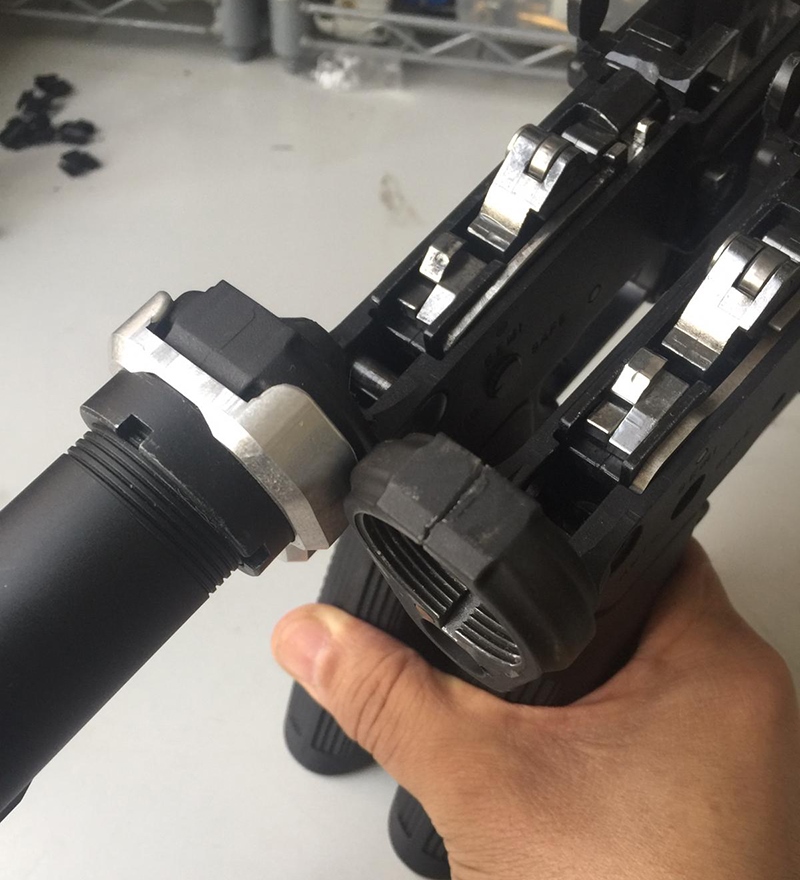

ProWin CNC Metal Frame Protector for Marui M4GBB (27-09-2018)

槍身防爆保護器,就算槍身已爆,裝上後也可以正常運作 (限量生產)

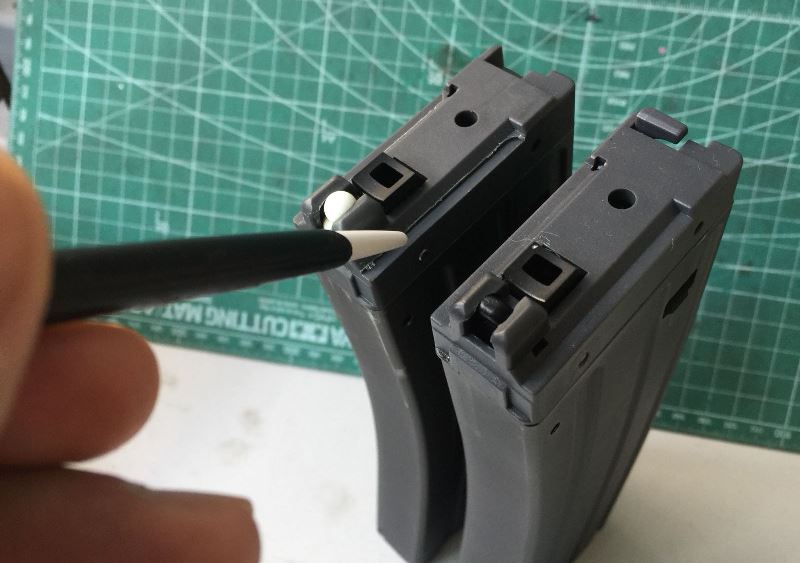

ProWin CNC EVO Series Magazine for Marui M4GBB Ver 1.3 (Direct support Marui Type89) (30-08-2018)

如果未到店家換彈匣頭的請等多兩星期才去更換最新版本



彈匣底保護器STL下載



ProWin CNC EVO Series Magazine for Marui M4GBB (Maintenance Guide - disassembly & assembly) (20-08-2018)



ProWin CNC EVO Series Magazine for Marui M4GBB (How to replace the valve, lip and gas route bucking etc..) (19-08-2018)



因發現 Marui M4 的公差問題而無法扣上本產品,新一批的產品上作出了修改把管制位置減小了0.5mm,如果在香港購買的可以在本月20日之後向你購買的店家更換零件 (14-08-2018)

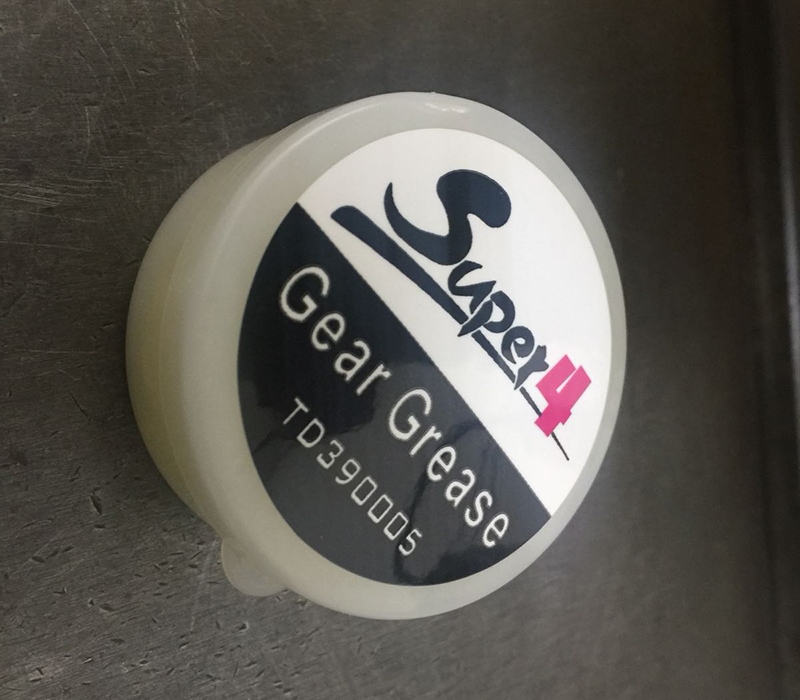

NEWS !!! ProWin成功取得Super4超能滑油代理權 (28-07-2018)

- 本油特性:
  超級潤滑,耐久力強
  流失率底和不傷人畜
  重點推介 GBB Slide 和 Frame 之滑軌位置
  Bolt & Nozzle
  AEG Gearbox 齒輪和 Hop-up Chamber and Piston




ProWin CNC EVO Series Magazine for Marui M4GBB (買後需知) !! (22-07-2018)



ProWin CNC EVO Series Magazine for Marui M4GBB preparing for shipping !! (21-07-2018)



NEWS !!! ProWin CNC G36 Chamber LOGO changed from CNC Milling to LASER marking (27-03-2018)
ProWin CNC EVO Series Magazine for Marui M4GBB Testing (28-01-2018)

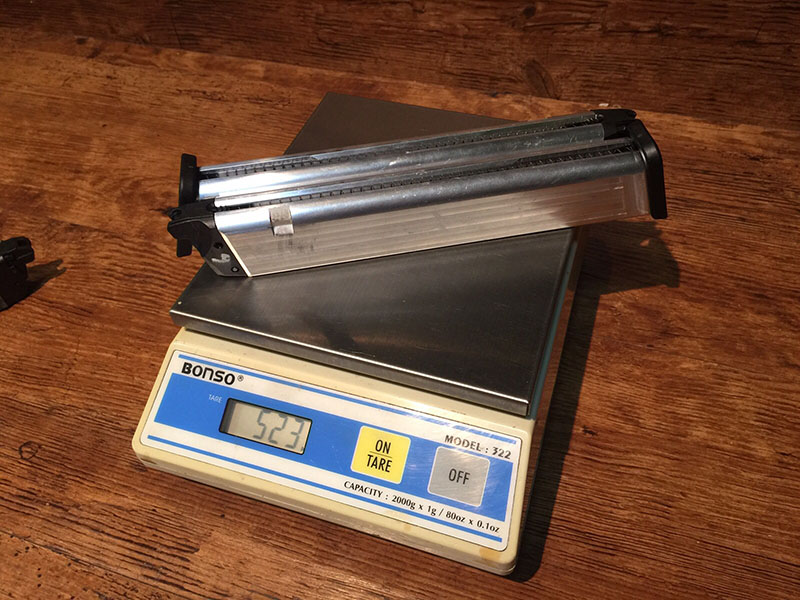

ProWin CNC Evo Series Magazine for WA & Marui M4GBB (24-12-2017)

- Marui Spec. :
  weight : 320g 50rd
- Wa Spec. :
  weight : 340g 50rd

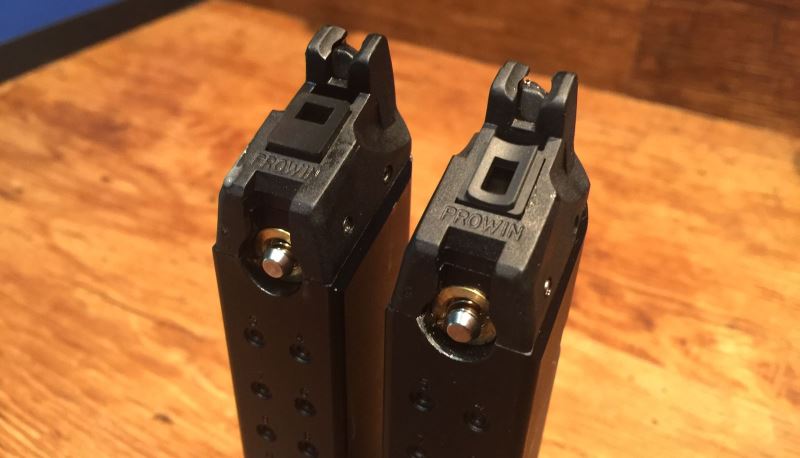

ProWin CNC Magazine for Marui Glock, KSC compatible (08-04-2017)

- Change KSC version Gas Router Rubber

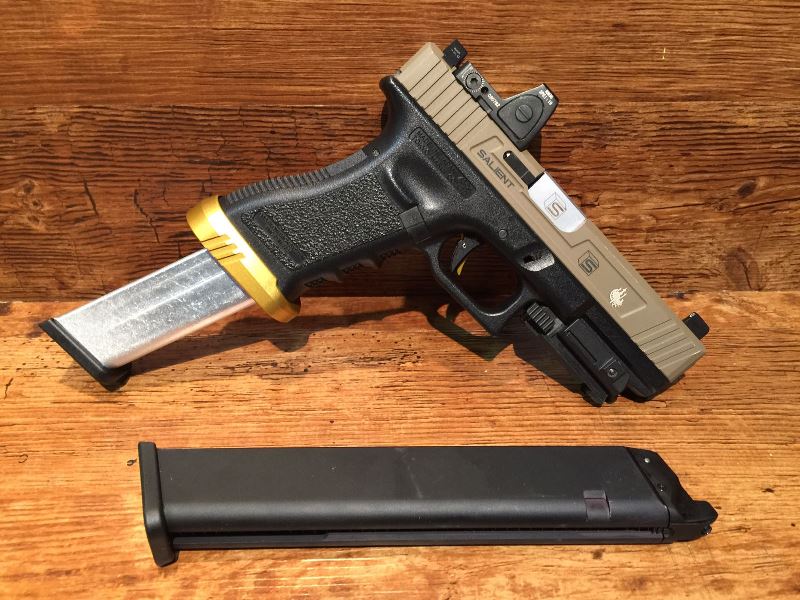

ProWin CNC 52rds Magazine for Marui Glock (30-03-2017)

- Weight: 220g
- Loading capacity: 52 Rounds





ProWin CNC Chamber LOGO changed from CNC Milling to LASER marking (28-02-2017)

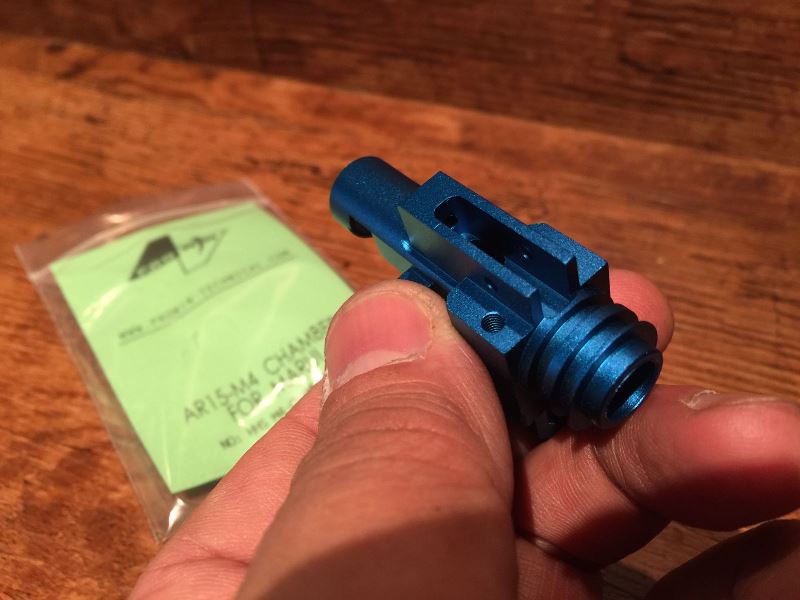

ProWin CNC Chamber for Marui AEG M4 2016 version
(12-12-2016)

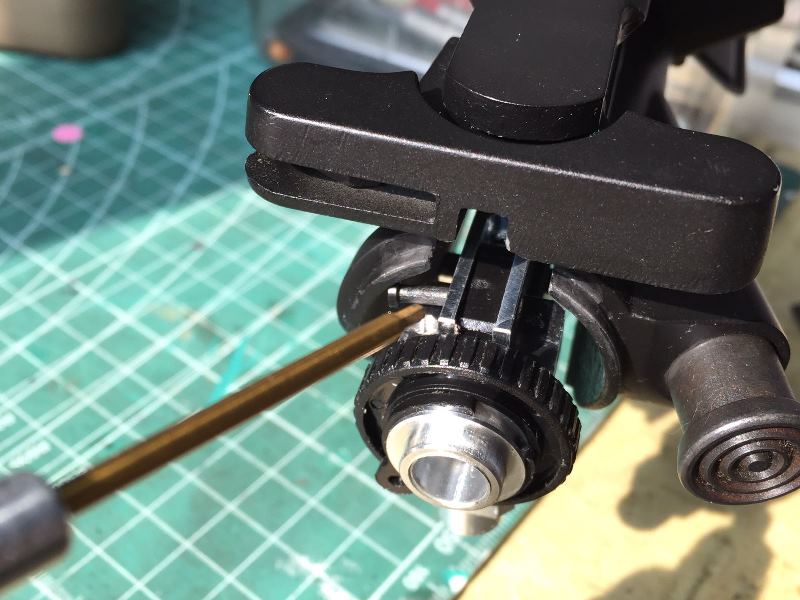

(近日街上有一些流言說本公司的 M4 chamber 多了一個螺絲吼位的是假貨,錯,新加上的設計是用來防止槍枝發射時,震動引致 hop-up arm pin 有可能鬆掉而新加上去的,**機米** 包裝內沒有的,如果用戶發現 hop-up arm pin 有鬆掉現象,可以自行加上)
本公司的產品由 2003-2016 年,全部由本公司在香港自行加工生產,沒有交由其它公司代工!如果不想買到假貨,請直接與以下公司購買!

** 以下排名不分先後 **
RedWolf
eHobby Asia
WGC
MMC
Gun and Guys
QRF
DYTAC
Supreme Co.
Boom Arms
Gun Art
Global Airsoft
Alpha Airsoft
Smart Team
PX
Marine Shop
AST / RA-TECH

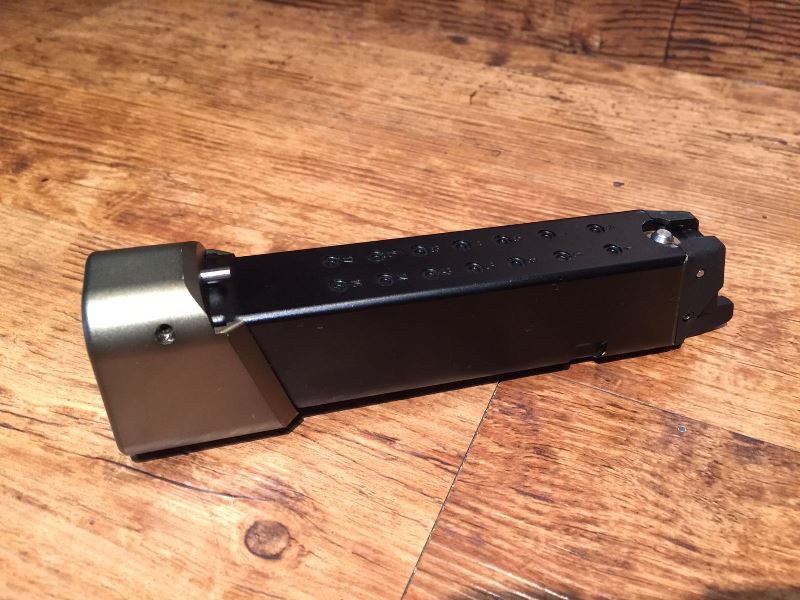

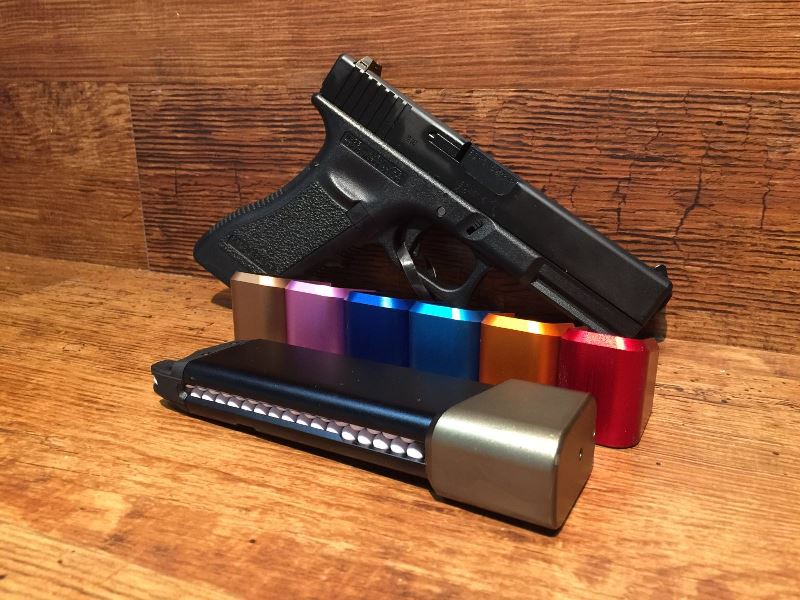

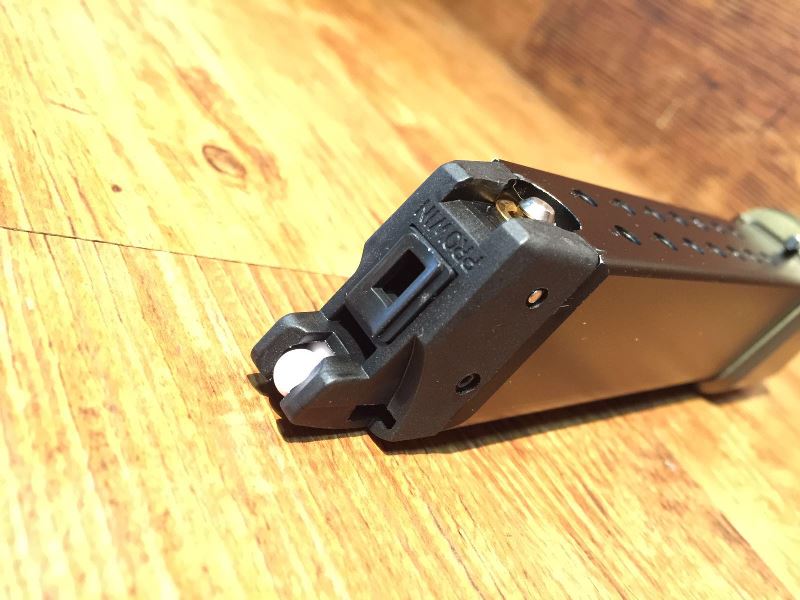

ProWin CNC GLOCK Magazine with TACTICAL BASE PAD (23+1 rounds of 9mm style) for Marui (24-07-2016)

- 36 Rounds Loading Capacity
- For All Marui Glock series











ProWin CNC GLOCK Magazine for Marui 2.8ºC lower temperature test (24-01-2016)

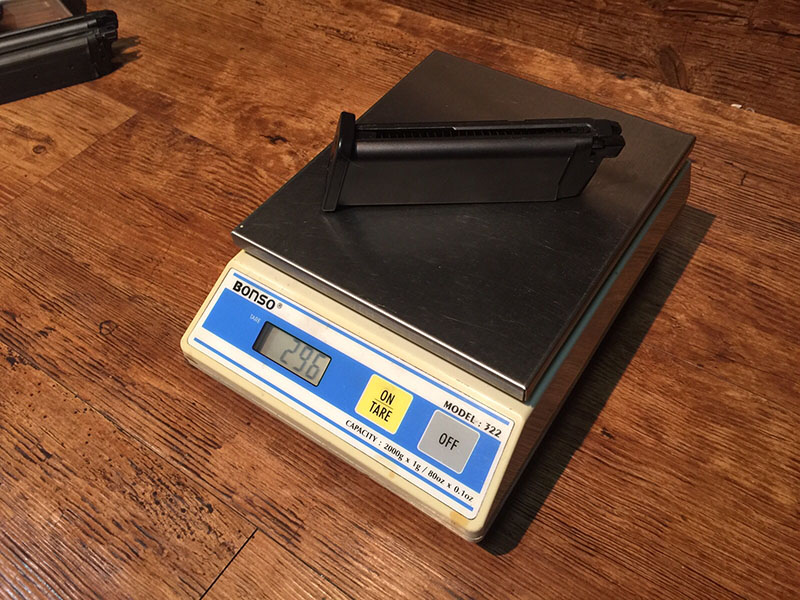

Coming soon : ProWin CNC GLOCK Magazine for Marui (12-01-2016)

- Nearly half-weight of original









News : ProWin CNC Nozzle for GHK GBB AK - SOLD OUT (01-08-2015)



ProWin CNC 170mm for Marui Hi-Capa - Wargame Version release (18-06-2013)

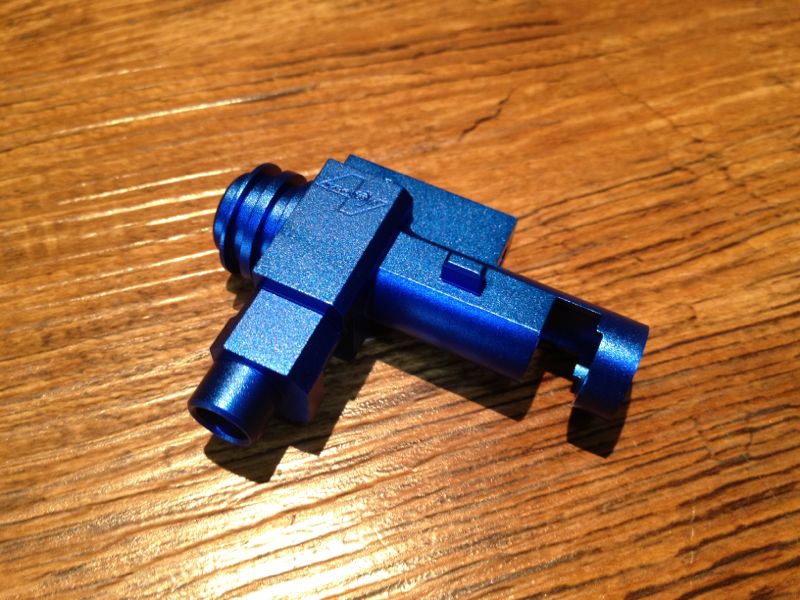

News : ProWin CNC Chamber M4, AK, G36 & P90 for Marui AEG change finishing from Glossy to Scrub (16-03-2013)

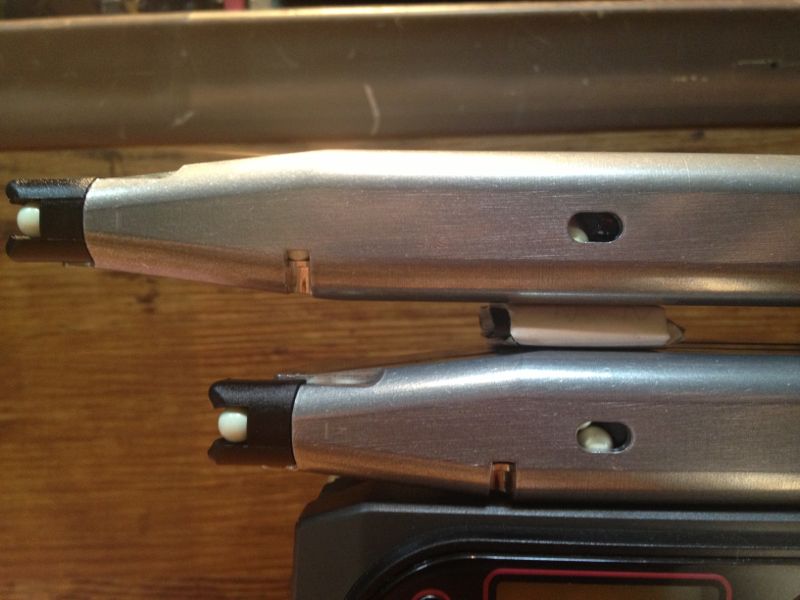

ProWin CNC 140 & 170mm Magazine for Marui Hi-Capa release (08-01-2013)
-140mm & 170mm Standard Version
-140mm & 170mm HKAPSC Version
-140mm at 18rds hold, 170mm at 28rds hold
-New semi closed magazine catch





ProWin CNC Chamber for GHK GBB AK release (08-01-2013)
-Limited Edition
-More durable than the original design



ProWin CNC Nozzle for GHK GBB AK release (20-10-2012)
-Limited Edition
-Recommend cut 5mm Hop-Up Rubber for better performance






ProWin CNC Magazine for GHK AK retail version test (17-09-2012)



ProWin Enhanced firing-pin for GHK AK coming soon (15-09-2012)

ProWin enhanced firing-pin for GHK GBB AK

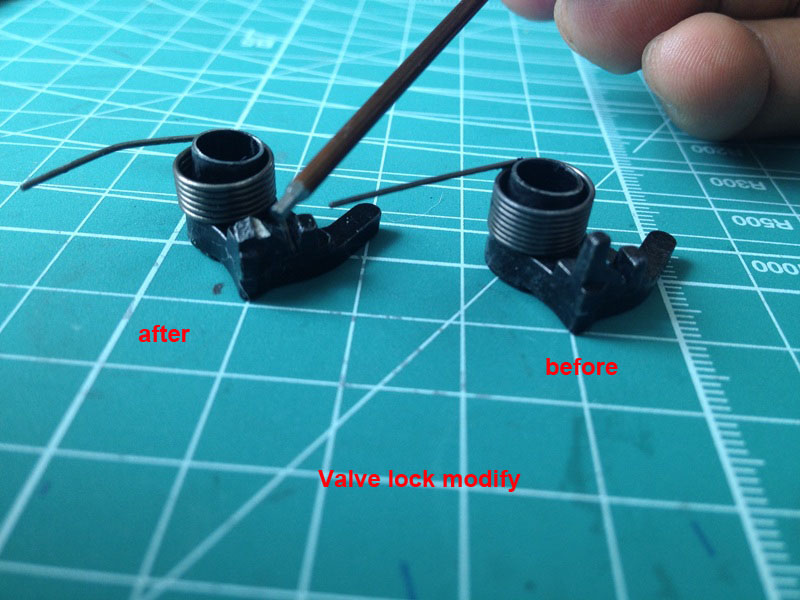

配合 ProWin CNC AK 彈匣 (for GHK) 推出,為了有更佳表現,須要一個小改動,就是把槍身內的火控部份停止發射捍上限制部份移平,和小彈簧屈曲少許,令到停止捍可再向前下壓,把正壓接觸時間加長,減少發射時無故停止的幾會率可達98%以上.(請參看付圖)!!

GHK GBB AK valve-lock modify



ProWin CNC Nozzle for GHK AK coming soon (12-09-2012)

ProWin CNC Nozzle for GHK GBB AK

ProWin CNC Magazine for GHK AK coming soon (08-09-2012)

ProWin CNC Magazine GHK AK GBB

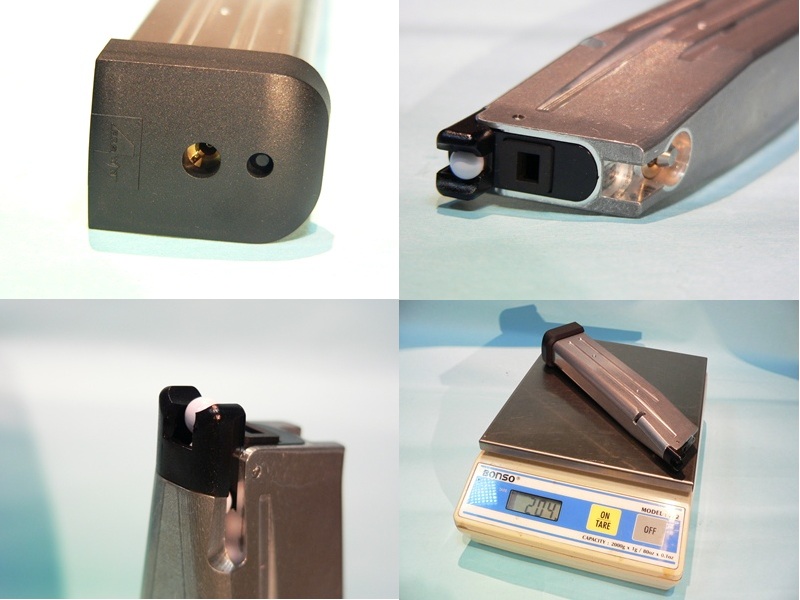

ProWin CNC 170mm Magazine for Marui Hi-Capa (Complete Set) coming soon (02-08-2012)

Specification :

ProWin 170mm : BB hold 41rds, Weight 204g


ProWin CNC 170mm Magazine for Marui Complete set

ProWin CNC 170mm Magazine for Marui Complete set

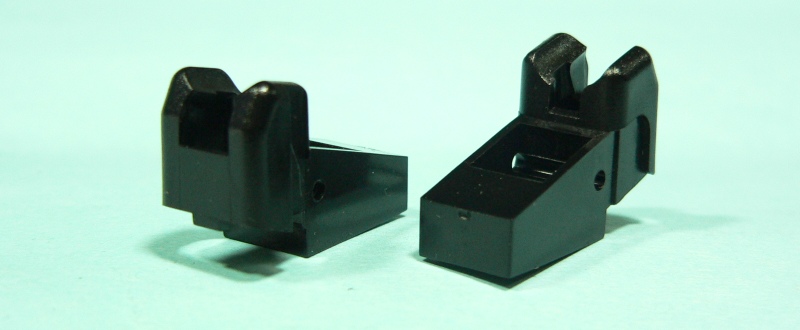

ProWin Magazine Lip for Original Marui Hi-Capa coming soon (24-07-2012)

ProWin Magazine-Lip for Original Marui Hi-Capa


ProWin CNC 170mm Magazine (KIT) for Marui Hi-Capa coming soon (08-01-2012)

Specification :

ProWin 170mm : BB hold 40rds, Weight 206g

Marui 140mm : BB hold 31rds, Weight 374g

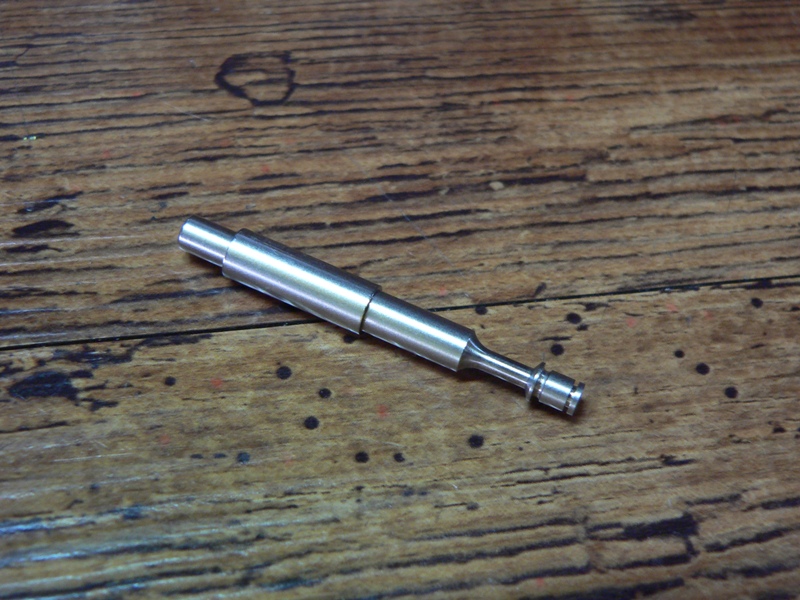

ProWin New Version Value Pin for ProWin CNC GGB M4 Magazine (15-12-2011)

Material : Steel
Improvement : Stability on full-auto
All our new magazine will use Steel Value Pin as standard




ProWin CNC Hop Up Chamber for Marui M4 old style - TEST (15-12-2011)





ProWin CNC Hop Up Chamber for Marui M4 old style - high speed !! coming soon (24-10-2011)




ProWin CNC Chamber for Marui P90 released (17-06-2011)



ProWin GBB Magazine for GHK AK coming soon (21-05-2011)

Draft Specification :

Weight : 500g

BB's load : 64rds

Gas Tank : CNC machined

BB's loader : Standard Marui BB Loader

外型弧度和長度修正 (GHK 彈匣弧度和長度和真品不符)

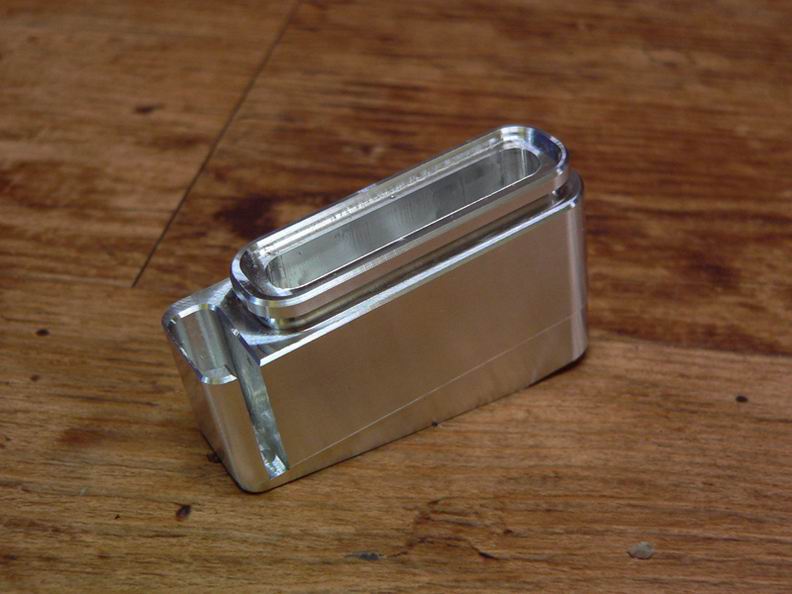

ProWin CNC GBB 20 rds Magazine V2 coming soon (15-02-2011)

Testing using Inokatsu 2009 (G&P WP117 Nozzle Set), GAS ET1100 / Green GAS, ProWin 150% Hammer Spring, Standard ProWin Gas Route Bucking.



Draft Specification :



New Version 2 CNC GBB Magazine (01-09-2010)

1. 39g lighter than version 1 (V1=477g, V2=438g)

2. BB hold up to 52 rounds

3. Re-design Valve Lock, stable, smooth and durability than previously

4. All Die Casting parts CNC refinished

5. New version Magazine more compatible than version 1, now using standard Gas Route Bucking almost suitable for most propular brand GBB



G size GAS ROUTE BUCKING (03-07-2010)

New released G size Gas Route Bucking for CNC M4 Magazine

Change new material, 10 times durability than old version

Fit for G&P, BOOM ARMS, Prime, GHK (Knight PDW), fixed bolt jams problem (頂 bolt)



巴雷特 6.8mm SPC magazine 製作進行中 (07-06-2010)



Received some complain of our magazine (22-02-2010)

1. Using our Magazine in INOKASTU will jam Fire-Pin

Solution : need some modify (source from www.arms-cool.net) Thank You www.arms-cool.net userid : 榴槤日報

Reason : our magazine design ALL follow WA M4 original version, we can only PROMISE our Magazine FULL Function & Powerful using in WA M4 original version, other brand may need some adjustment or modify.

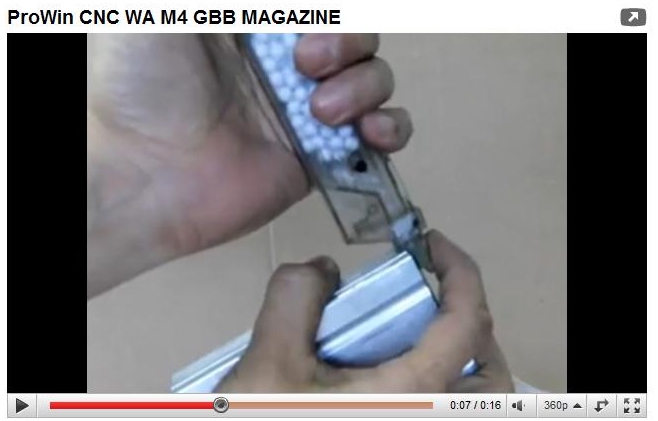

2. Difficult to load BB into our Magazine

Reason : We are redesign Magazine Lip to reduce Double BB problem, our magazine load BB in FRONT not in TOP

Solution : Using Marui Style BB Loader like this :

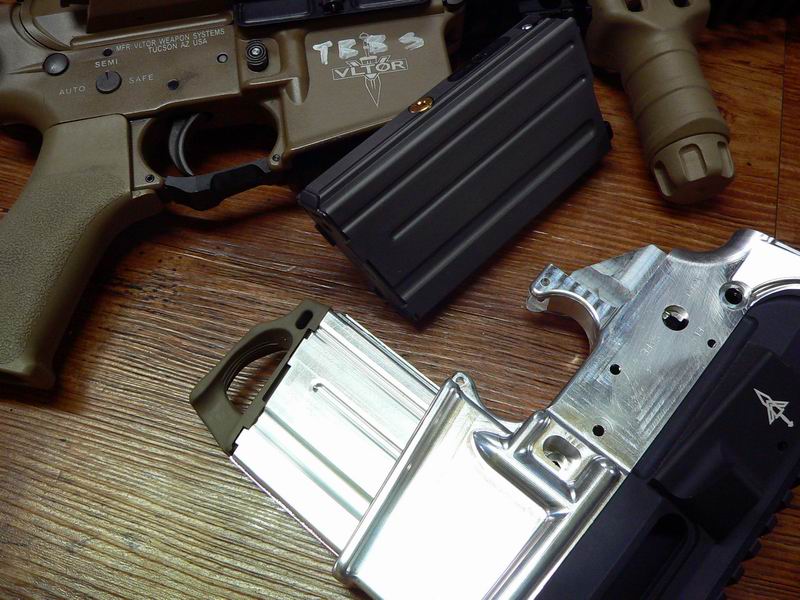

M4 5.56 20 Rounds Magazine will release on March (17-02-2010)

Disassemble Magazine Lip (25-01-2010)

Repair for Magazine Lip, Gas Route Bucking, Follower & Spring



Problem Fix for Bolt running not smooth, Magpul Ranger Install

If you feel bolt set moving not smooth and nozzle too tight with magazine rubber, you need modify magazine catch, cut down about 0.2mm as below picture :

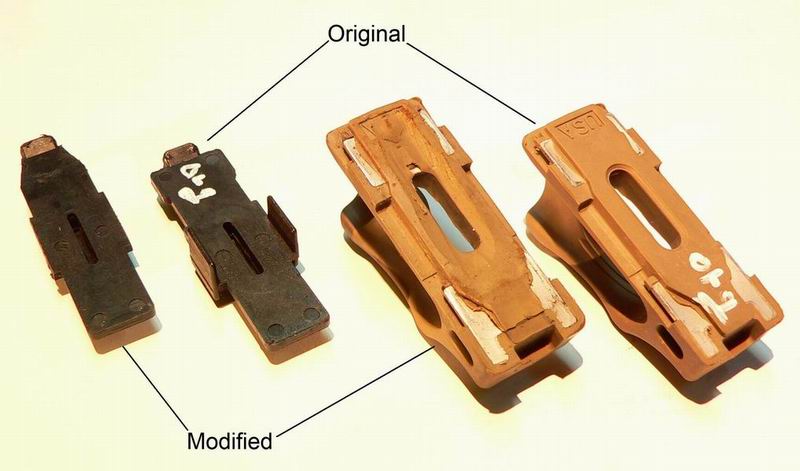

Magpul Ranger modify :



ProWin CNC M4 Magazine RELEASE DATE (20-Jan-2010)

On Sale (special discount on limited quantity) 21-Jan-2010

   - Fit for WA, G&P & AGM (5.56 30 rounds standard version)

   - INOKATSU & VIPER (毒蛇) need upgrade our Enhance KIT (Magazine Rubber & Spring)



ProWin CNC M4 Magazine FULL-AUTO Test (11-Jan-2010)

GAS - Red Gas - ET2200

GUN - INOKATSU 2009 M4 SUPERVERSION (change Reinforced Recoil Spring)

GAS - Top Gas

GUN - G&P WOC, 51 rounds x 3 times Gas charge



22 Years experience (02-Jan-2010)



ProWin CNC WA M4 Magazine test result(11-May-2009)

High pressure test, charge CO2 to ensure our magazine no gas leak

High temperature test, overheat to 39°C full-auto test (ProWin)



WA M4 CNC Magazine NEW PHOTOS (07-May-2009)

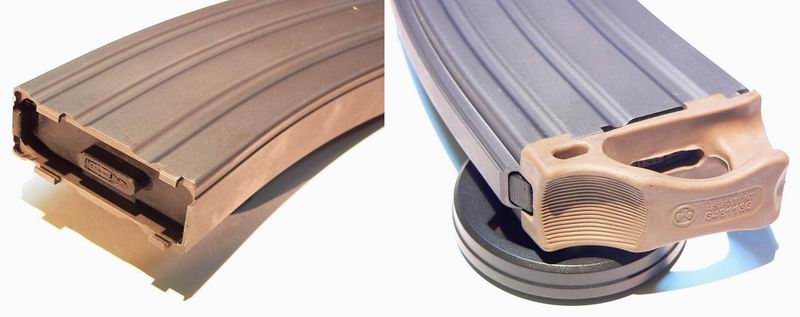

Magpul Ranger install (26-Apr-2009)





WA GBB M4 Magazine work in progress !! (01-Feb-2009)
